Description

• We recommend using the WeMacro 5.0 control program, which allows you to directly calculate the step size of the objective lens. When Micromate is selected in the program, the actual working step size on the microscope will be displayed.It  can be downloaded here

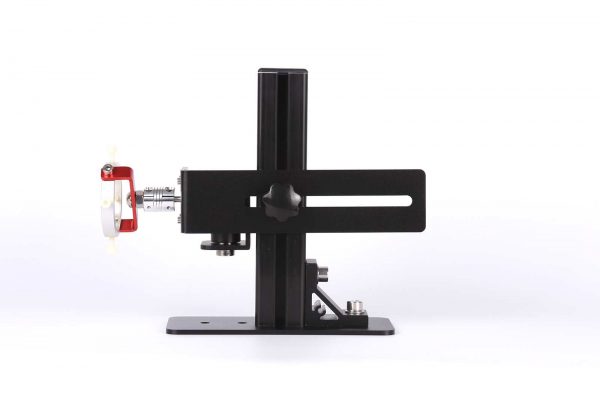

MicroMate is specially designed for microscope focus stacking.The motor on MicroMate is 400 step 0.9 degree.

For a clear display effect, we enlarged the step size, and each click sound represents taking a photo. The current version of the control box has a silent shutter.

The hight of motor can be adjusted as 2cm-18cm(It depends on the fine adjustment knob height)The knob’s diameter should smaller than 5 cm.

The package contain  as below:

1, MicroMate  bracket

2,Control box(bluetooth build-in)

3,Power supply (12V2A  US plug)

4,USB cable(about 1.5m)

5,Stepper motor cable( about 1m)

6, Shutter extension cable(about 1.5m)

7, Shutter release cable (1C,3C,S2,1N,3N)

8,Reverse motor cable(It’s better to let objective lens leave the sample in stacking)

When the step length set as 1 micron in software,it will take 2132 steps make a full circle.

If the fine adjust focus of microscope rotate one circle as 500 micron.The minimum step is 500/2132 ≈0.23 micron as a step.If the step length set as 5 micron,the  real step is 500/400 =1.25 micron as a step.

If the fine adjust focus of microscope rotate one circle as 200 micron.The minimum step is 200/2132 ≈0.09 micron as a step.



Manual download

Shutter release cable

1C  For  Canon EOS1100D(Rebel T3), 700D(T5i), 650D(T4i), 600D(T3i),60Da, 60D,70D, 550D(T2i), 500D (Digital Rebel T1i), 1000D (Digital Rebel XS), 450D (Digital Rebel XSi ), 400D (Digital Rebel XTi ), 350D (Digital Rebel XT), 300D (Digital Rebel), Canon EOS 30, 33, 50, 50E, 300V, 300, 3000…etc;
PowershotG15,G12,G11,G10,G1X;
PENTAX K-7,K-X,K-50,K-1,645,etc

3C For Canon:EOS6D, 7D, 50D, 40D, 30D, 5D, 20D, 10D, 5D Mark II, 5D Mark III, 1D X, 1D Mark IV,1Ds Mark III, 1D Mark III, 1D Mark II N, 1Ds Mark II, 1D Mark II.

1N For Nikon D4, D3X, D3, D700, D800, D800E, D700, D300S, D300, D200;D810;D500

3N For Nikon:D600, D3200, D3100, D5100, D7000, D7100,D7200, D5000, D90,D750

S2 for Sony :A58 NEX-3NL A7 A7R A7R2 A7S A3000 A5000 A6000 HX300 HX50V RX100II RX100III
